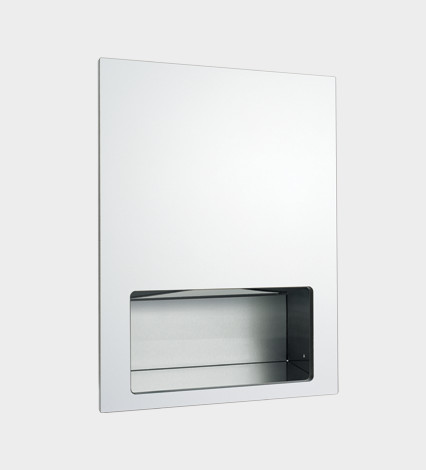

Paper Towel Dispenser Completely Recessed
Add to cart
  • Description
  • Specifications

This sophisticated paper towel dispenser cabinet is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto Collection its minimalist appeal.

Well-suited for the smaller washroom with less space and traffic, this unit dispenses 350 C-fold or 475 multi-fold paper towels. Towels are self-feeding until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly.

INSTALLATION
Mount unit in wall recess using four (4) № 10 x 1-1/2" [M5 x 38] self tapping Pan Head screws (by others) through concealed mounting holes provided in Shim-less adjustable mounting tabs. For general utility mount
unit 1268mm AFF to bottom of unit. See OM & IG for complete installation instructions packed with unit. For mounting height standards refer to current Building Code of Australia for able bodied and/or disabled use.

OPERATION
Towels are self-feeding until supply is depleted. Unit may be refilled with a partial load in-place and will continue to feed properly.

Finished Wall Opening 325 W x 440 H x 121mm D minimum
Warranty 1 year
