Applause Automatic Hand Dryer

ASI JD Macdonald
From
Add to cart
  • Description
  • More details
  • Specifications

Applause Automatic Hand Dryer with sensor operation, streamlined, minimal design for smaller environments. Engineered for washrooms requiring low noise levels.

It has a durable stainless steel casing with theft resistant torx screws. Tamper-proof & safe intake opening. Pivot bracket inside cover for ease of installation.

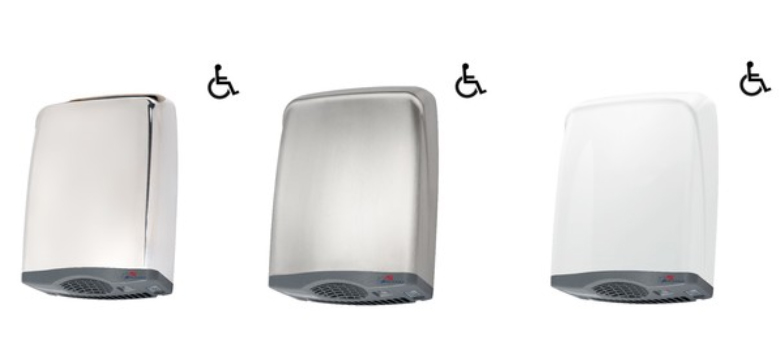

Available Finishes:

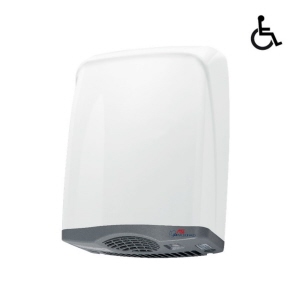

ASHDAPWHT - Classic White

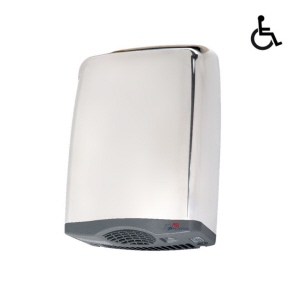

ASHDAPPSS - Polished Stainless Steel

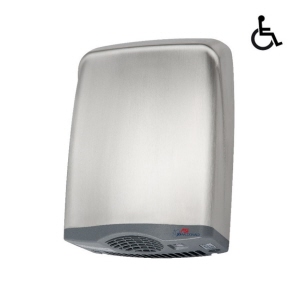

ASHDAPSSS - Satin Stainless Steel

These automatic hand dryers are more hygienic, thanks to touchless technology!

Operating Voltage 220-240VAC, 50/60Hz, 4.16A, 1.8kW
Warm Air Volume Output 89CFM{151m³/h}
Warm Air Temp Output 65 deg C at ambient T=25 deg C
Motor Type 2800 RPM, 0.1k rpm, Dual Ball Bearings
Heater Thermal Protection Auto Resetting Thermostat turns unit off at 221 deg F, {105 deg C}
Heater Element 900W @ 220-240VAC, Nichrome 64
Heater Thermal Protection Auto resetting Thermostat turns unit off at 85 deg C, Resets at 75 deg C
Drying Time Less than 30 Seconds
Circuit Operation Infrared Automatic, Self Adjusting
Sensor Range 4" to 10" [100mm to 250mm], adjustable; standard 6" [17cm±2cm]
Timing Protection 1 minute auto shut off
Timing Duration 10 seconds delayed turn off after last sensor read
Sound level 55.1dB @ 2m
Cover Type Formed Steel , 1.2mm
Cover Finish White Epoxy Finish, Bright on stainless steel, satin on stainless Steel
Net Weight 4.6kg
Shipping Weight 5.2kg
Unit Size 250(W) x 361(H) x 146(D)mm
RECOMMENDED MOUNTING HEIGHTS
Men 50" (1270mm)
Women 47" (1194mm)
Children 4-7 Years 35" (889mm)
Children 8-10 Years 39" (991mm)
Children 11-13 Years 43" (1092mm)
Children 14-16 Years 47" (1194mm)
Handicapped 40" (1016mm)
